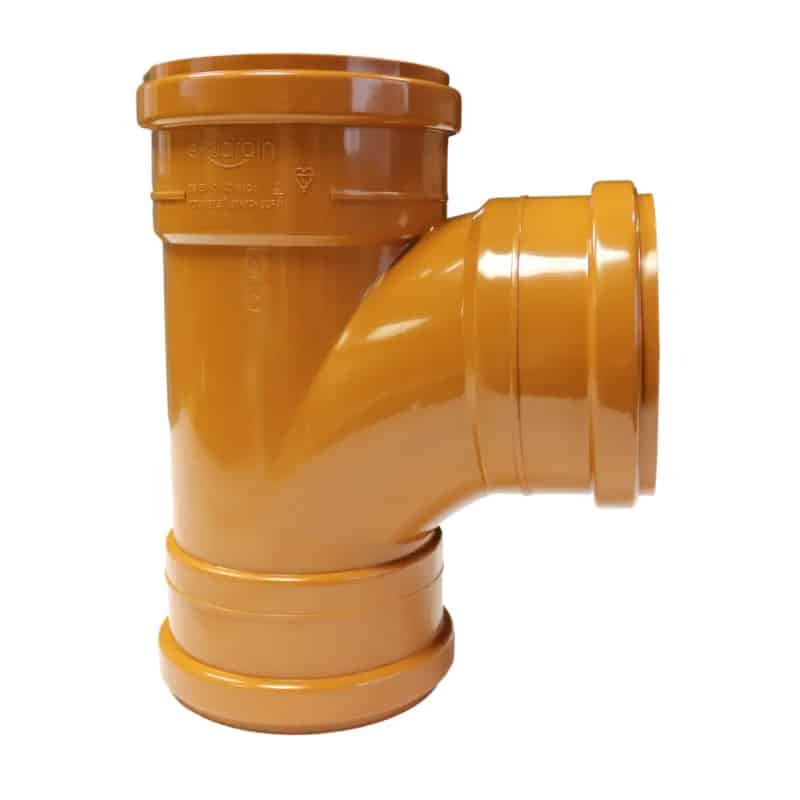

110mm Underground Drainage 87.5° Triple Socket T Branch Aquaflow | EDUJTS87.5

Description

110mm T Branch for Underground Drainage

The T branch creates an 87.5° junction within compatible 110mm underground drainage systems. The Aquaflow EDUJTS87.5 features three socketed connections, allowing compatible 110mm drainage pipes or spigot-ended fittings to connect directly into each opening. This triple socket branch is designed for foul water, surface water and general gravity drainage applications. Its near-90° junction provides a practical way to introduce an additional drainage run into the main underground pipework.

T Branch Features

• 110mm nominal underground drainage size
• 87.5° branch angle
• Triple socket configuration
• Three socketed connections
• Push-fit underground drainage design
• uPVC construction
• Terracotta underground drainage finish
• Approx. 210mm overall length
• Approx. 128mm overall width
• Suitable for gravity drainage and sewerage
• Suitable for foul and surface water systems
• Aquaflow product code EDUJTS87.5

Where to Use the T Branch

Use this fitting where an additional 110mm drainage run needs to connect into a main underground pipe at approximately 90°. The 87.5° configuration is suitable for common underground foul and surface water drainage layouts. Typical applications include:

• Foul water drainage systems
• Surface water drainage
• Domestic underground drainage
• New-build drainage installations
• Drainage extensions
• Drainage repairs and alterations
• Connecting additional drainage runs
• General groundwork installations

87.5° T Branch Angle

The manufacturer specifies the EDUJTS87.5 as an 87.5° branch. Although this type of underground drainage fitting is commonly described in the trade as a 90° branch, 87.5° is the correct technical specification for this product. Using the manufacturer’s stated angle provides customers with accurate product information while terms such as 90° T branch can still be included within the product tags for search purposes.

Triple Socket T Branch Connections

The EDUJTS87.5 has three socketed connections. This allows compatible plain-ended 110mm underground drainage pipe or suitable spigot-ended fittings to connect directly into all three sides of the junction. The triple socket arrangement can be particularly useful where all three connecting pipes are plain ended and a separate coupling would otherwise be required.

Installing the Branch

Establish the drainage route, direction of flow and required pipe fall before installation. Where drainage pipe is cut on site, make the cut square and remove sharp burrs from the pipe end. Clean all socket connections and sealing surfaces before assembly. Remove soil, grit and other debris that could interfere with the push-fit joints. Apply a suitable underground drainage lubricant where required. Align each pipe squarely with its socket before pushing the connection together.

Supporting the T Branch

Provide suitable bedding beneath the junction and connected drainage pipework. The T branch should form part of a correctly supported underground drainage system rather than carrying the weight of unsupported pipework. Maintain the correct drainage fall and check all three connections before completing the surrounding backfill. Keep sharp stones and rubble away from the fitting.

T Branch for Gravity Drainage

The Aquaflow underground drainage system is intended for gravity drainage and sewerage applications. The EDUJTS87.5 can be used within compatible foul water and surface water systems where an additional drainage run needs to join the main pipework. Correct orientation, pipe support and installation fall are important for maintaining reliable drainage performance.

EDUJTS87.5 Branch Product Code

The correct product reference for this triple socket fitting is EDUJTS87.5. Do not confuse it with EDUJDS87.5, which is the corresponding 87.5° double socket branch. The EDUJTS87.5 is specifically the triple socket version.

Triple Socket or Double Socket Branch?

Choose the socket configuration according to the surrounding drainage pipework:

• EDUJTS87.5: 87.5° Triple Socket Branch
• EDUJDS87.5: 87.5° Double Socket Branch

Check the connection arrangement required on site before ordering.

Compatible 110mm Underground Drainage

Browse the complete 110mm underground drainage range for compatible pipes, bends, couplers and drainage fittings. For official product dimensions and manufacturer information, view the Aquaflow EDUJTS87.5 product information.
