Description

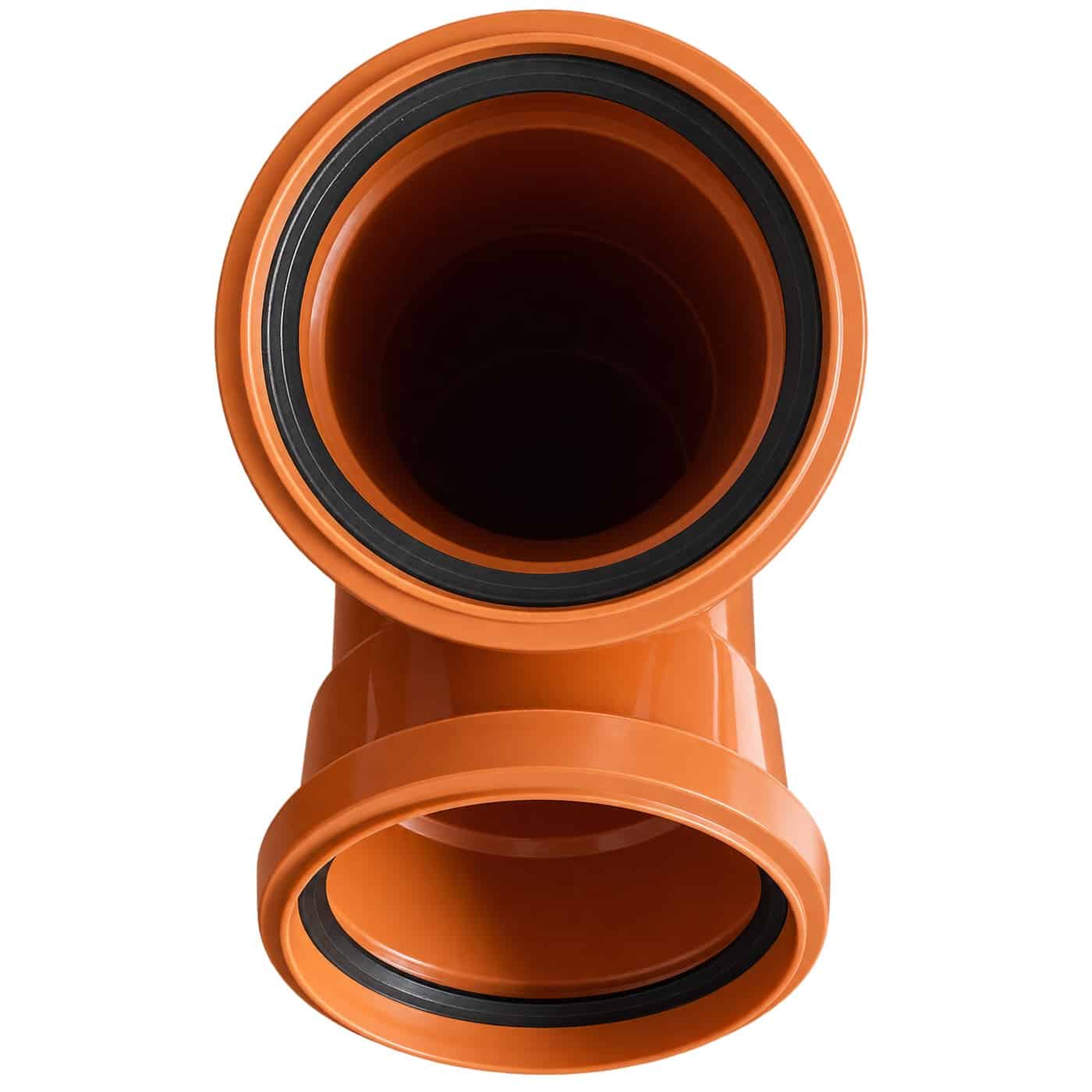

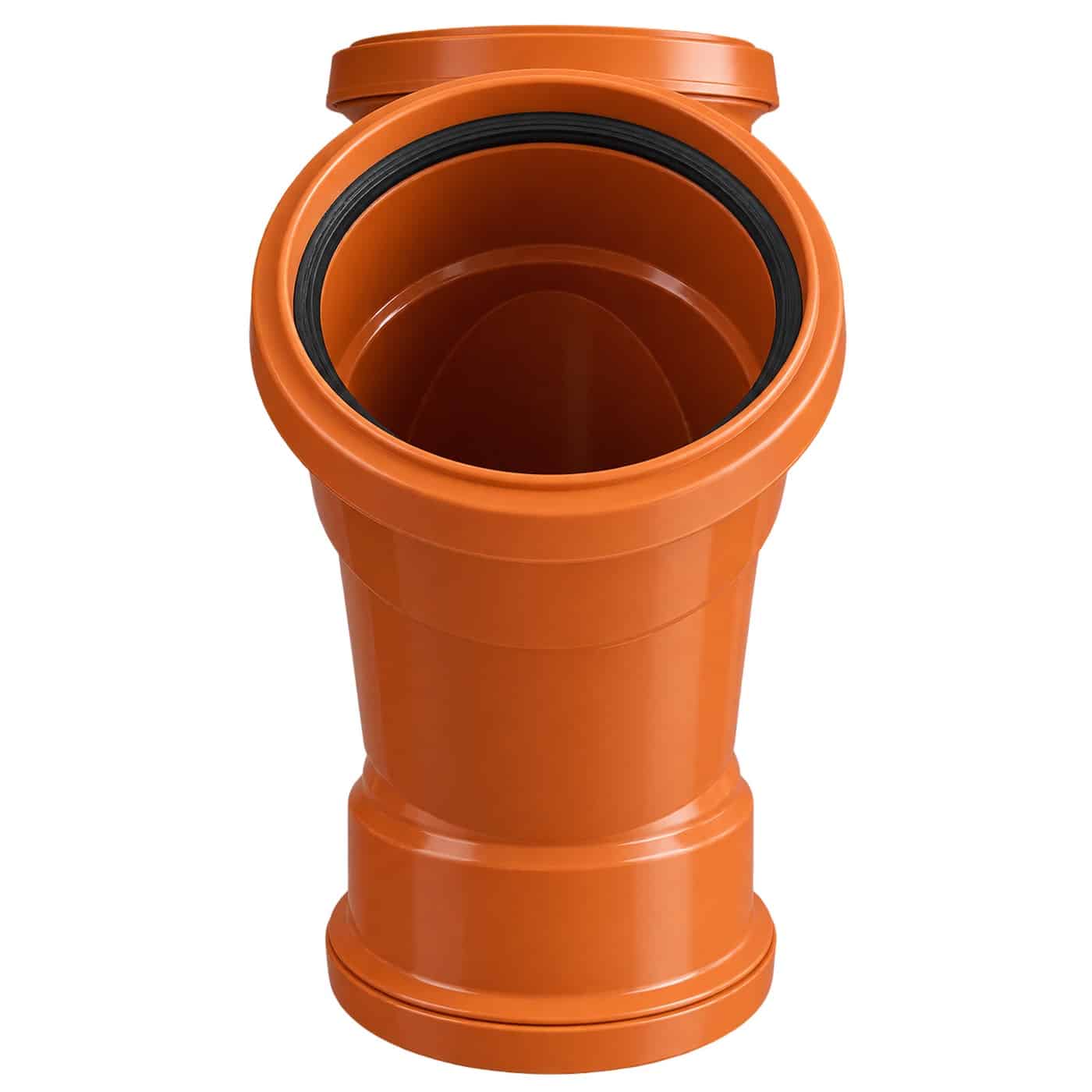

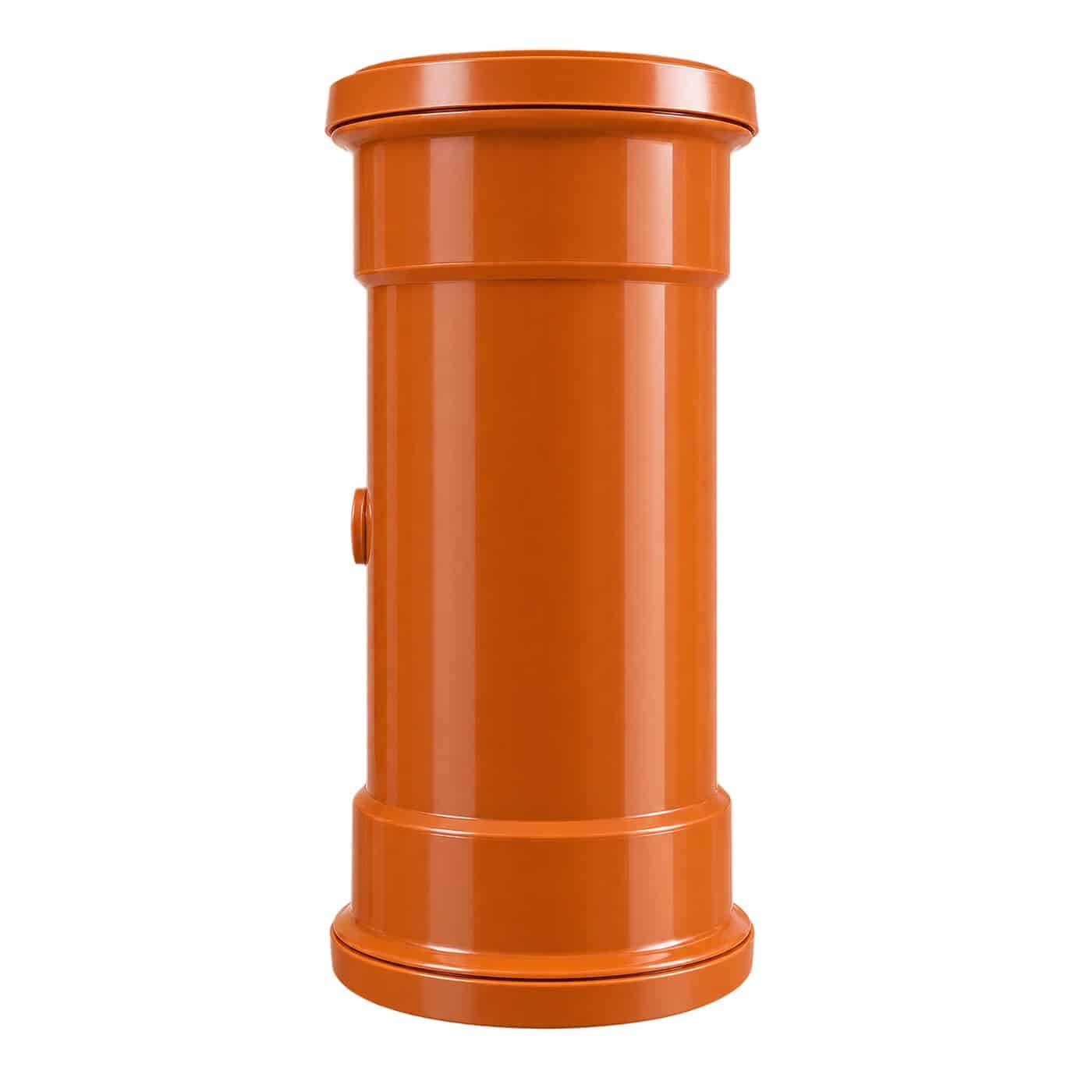

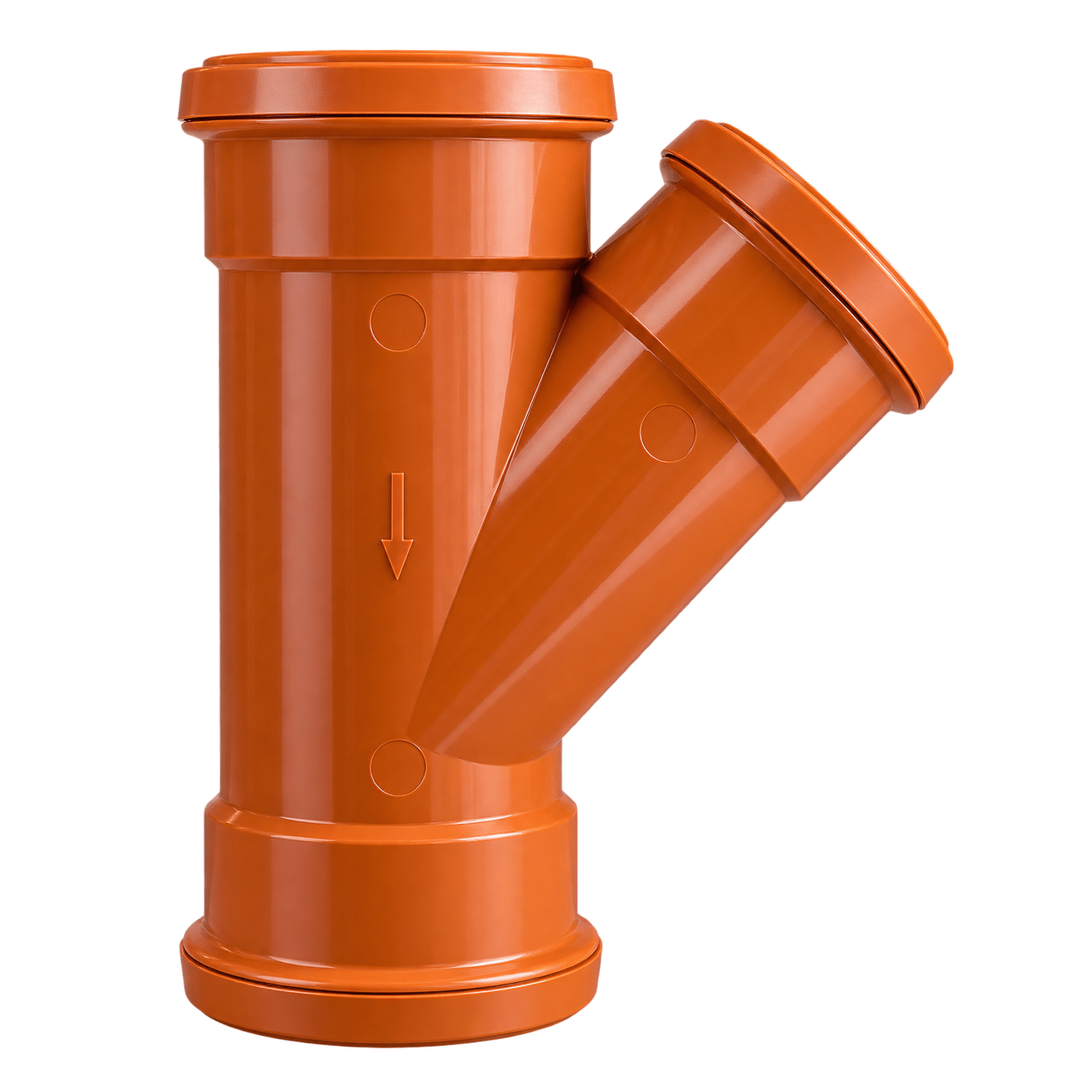

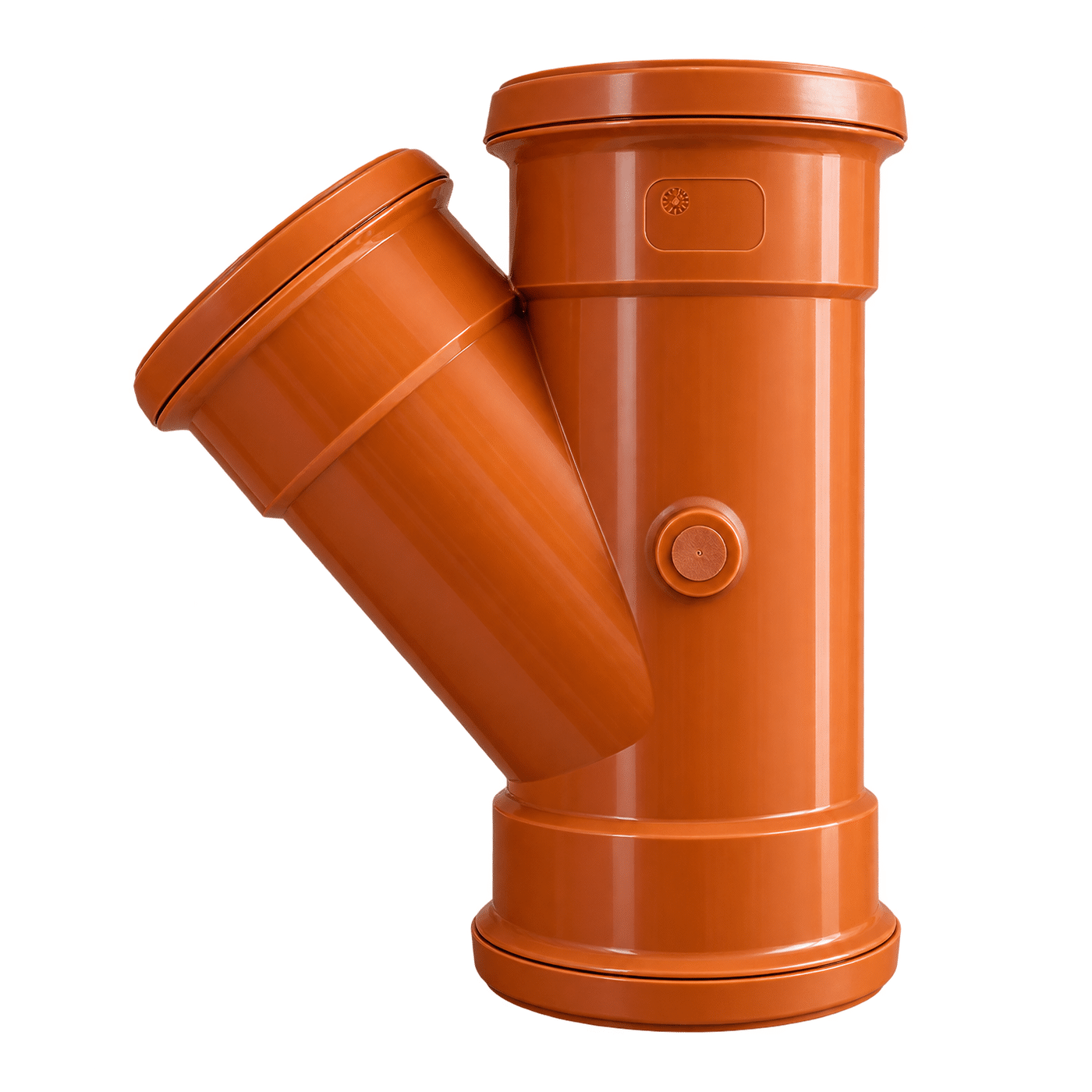

Competa Triple Socket Branch for 110mm Underground Drainage
The
Competa triple socket branch is a competitively priced fitting for creating a 45° junction in compatible underground drainage systems. This
110mm Y branch has three socketed connection points and allows an additional drainage run to join the main underground pipework. Designed as a practical value option for everyday drainage work, this
triple socket Y branch is suitable for new installations, extensions and repairs. It provides the connection required where a
45 degree Y branch is needed within a compatible 110mm drainage layout.
Product Features
- 110mm nominal underground drainage size
- 45° branch angle
- Triple socket configuration
- Three socketed connection points
- Y-shaped underground drainage junction
- Suitable for compatible 110mm drainage systems
- Useful for foul and surface water drainage layouts
- Suitable for new installations, repairs and extensions
- Competitively priced Competa Drainage range
- Stated product standard: EN 1401
- Competa Drainage product code CUG4TSJ45
Where to Use This Underground Drainage Branch
This
underground drainage branch is designed for locations where an additional 110mm drainage run needs to merge into a main underground pipe at a 45° angle. The angled connection allows the incoming drainage route to follow the intended direction of flow more gradually than a square 90° junction. Typical applications include:
- Domestic foul water drainage
- Surface water drainage
- House extensions and alterations
- New underground drainage installations
- Replacement drainage pipework
- Connecting additional drainage runs
- General groundwork projects
45 Degree Y Branch Connection
A
45 degree Y branch is commonly used where a secondary drainage run needs to merge into the main pipework without creating an abrupt change in direction. Before installation, establish the downstream direction of flow and position the branch accordingly. Correct orientation helps provide a logical route through the drainage system.
Triple Socket Y Branch Configuration
This fitting is a
triple socket Y branch, providing three socketed connection points around the junction. The triple socket arrangement differs from the Competa double socket version, so check the surrounding pipework before ordering to make sure this configuration matches the installation.
Installing the Competa Triple Socket Branch
Before installing the
Competa triple socket branch, check the drainage route, required fall and alignment of both the main run and incoming branch. If drainage pipe needs to be cut on site, make the cut square and remove sharp burrs or rough edges. Clean all connecting surfaces before assembly and use suitable drainage jointing lubricant where required by the compatible system. Align each connection carefully before making the joint. Avoid forcing pipework sideways into the fitting as this can affect the alignment of the complete drainage run.
Supporting the Underground Drainage Branch
The
underground drainage branch should be installed as part of a properly supported below-ground drainage system. Provide suitable bedding beneath the junction and surrounding pipework. Maintain the required drainage gradient through the main run and branch, and inspect all connections before backfilling. Avoid placing sharp stones, rubble or other potentially damaging material directly against the fitting.
Competa Triple Socket Branch for Value-Focused Installations
The
Competa triple socket branch forms part of our competitively priced Competa Drainage range, selected to provide practical fittings for everyday underground drainage work at a strong-value price point. It is particularly suitable for trade projects, drainage repairs, extensions and larger installations where material costs matter but the correct fitting configuration is still required.
Choosing the Correct 110mm Y Branch
Before ordering a
110mm Y branch, check three main details: pipe diameter, branch angle and socket configuration. This product is the 110mm, 45°
triple socket version. If the installation requires fewer socketed connections, choose the corresponding double socket branch instead.
Compatible 110mm Underground Drainage
Browse our complete
110mm underground drainage range for compatible pipes, bends, couplers, access fittings, rodding points and drainage accessories. For general UK guidance covering foul water and below-ground drainage, see
Approved Document H: Drainage and Waste Disposal.
