110mm Underground Drainage 45° Single Socket Bend Competa Drainage | CUG4SSB45

Description

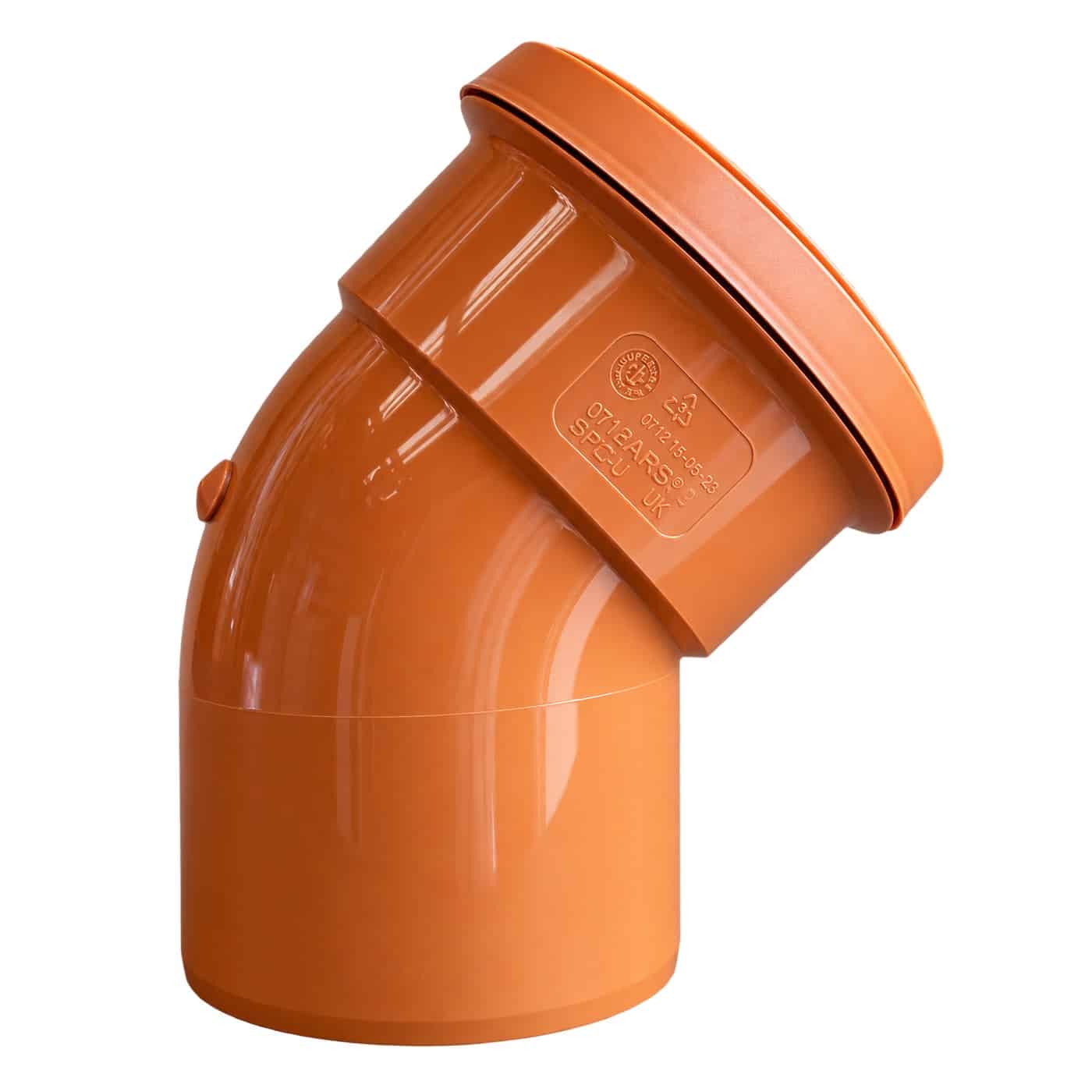

Competa 45 Degree Single Socket Bend for 110mm Underground Drainage

The Competa 45 degree single socket bend is a competitively priced fitting for creating a controlled change of direction within compatible 110mm underground drainage pipework. Its nominal 45° angle makes it suitable where a moderate directional adjustment is required within a below-ground drainage system. This 110mm single socket bend forms part of the Competa Drainage range and provides a practical, strong-value option for new installations, extensions and general underground drainage repairs.

45° Single Socket Bend Features

• 110mm nominal underground drainage size
• 45° nominal bend angle
• Single socket configuration
• Suitable for compatible 110mm underground drainage systems
• Suitable for foul and surface water drainage layouts
• Useful for new installations, alterations and repairs
• Terracotta / orange underground drainage finish
• Competitively priced Competa Drainage range
• Stated product standard: EN 1401
• Competa Drainage product code CUG4SSB45

45 Degree Drainage Bend

A 45 degree drainage bend provides a useful intermediate change of direction between shallower 15° and 30° fittings and a sharper 90° bend. It can be used when routing underground drainage around obstacles, adjusting the alignment of a pipe run or creating part of a more gradual directional change within the drainage system.

110mm Single Socket Bend

The 110mm single socket bend is designed for use with compatible underground drainage pipework and fittings. Its single socket configuration should be checked against the surrounding drainage layout before ordering. Single socket and double socket bends are used differently within a drainage installation, so selecting the correct connection arrangement can reduce the need for additional couplers.

Where to Use This Underground Drainage Bend

This underground drainage bend is suitable for compatible below-ground foul and surface water drainage installations where a nominal 45° directional change is required. Typical applications include:

• Domestic underground drainage
• Foul water drainage systems
• Surface water drainage systems
• House extensions and alterations
• New-build drainage installations
• Drainage repairs and replacements
• Changes of direction in 110mm pipework
• General groundwork projects

Installing the 110mm Drainage Bend

Before installing the 110mm drainage bend, establish the required route, fall and alignment of the complete drainage system. Where drainage pipe is cut on site, make the cut square and remove any sharp burrs or rough edges before assembly. Clean the jointing surfaces and use a suitable underground drainage lubricant where required. Align the fitting and surrounding pipework correctly before completing the connections. Avoid forcing pipework sideways into the bend to compensate for incorrect positioning.

Supporting Below-Ground Drainage

The bend and surrounding pipework should be laid on suitable bedding and correctly supported as part of the complete underground drainage installation. Check the joints, alignment and required drainage fall before completing the surrounding backfill. Avoid placing sharp stones, rubble or other potentially damaging material directly against the fitting.

Competa Drainage – Practical Value

The Competa 45 degree single socket bend forms part of our competitively priced Competa Drainage range, providing a cost-effective choice for everyday underground drainage work. It is particularly suitable for trade projects, property extensions, drainage repairs and general groundwork where practical fittings are required while keeping material costs competitive.

Choosing the Correct Bend

This product is the nominal 45° single socket version. Other angles and socket configurations are available, so check the planned drainage route and surrounding connections before ordering. For smaller adjustments, 15° or 30° bends may be more suitable. For larger directional changes, 90° and swept bend options are also available within the 110mm underground drainage range.

Compatible 110mm Underground Drainage

Browse our complete 110mm underground drainage range for compatible pipes, couplers, branches, access fittings, rodding points and drainage accessories. For general UK guidance covering below-ground drainage installations, see Approved Document H: Drainage and Waste Disposal.
