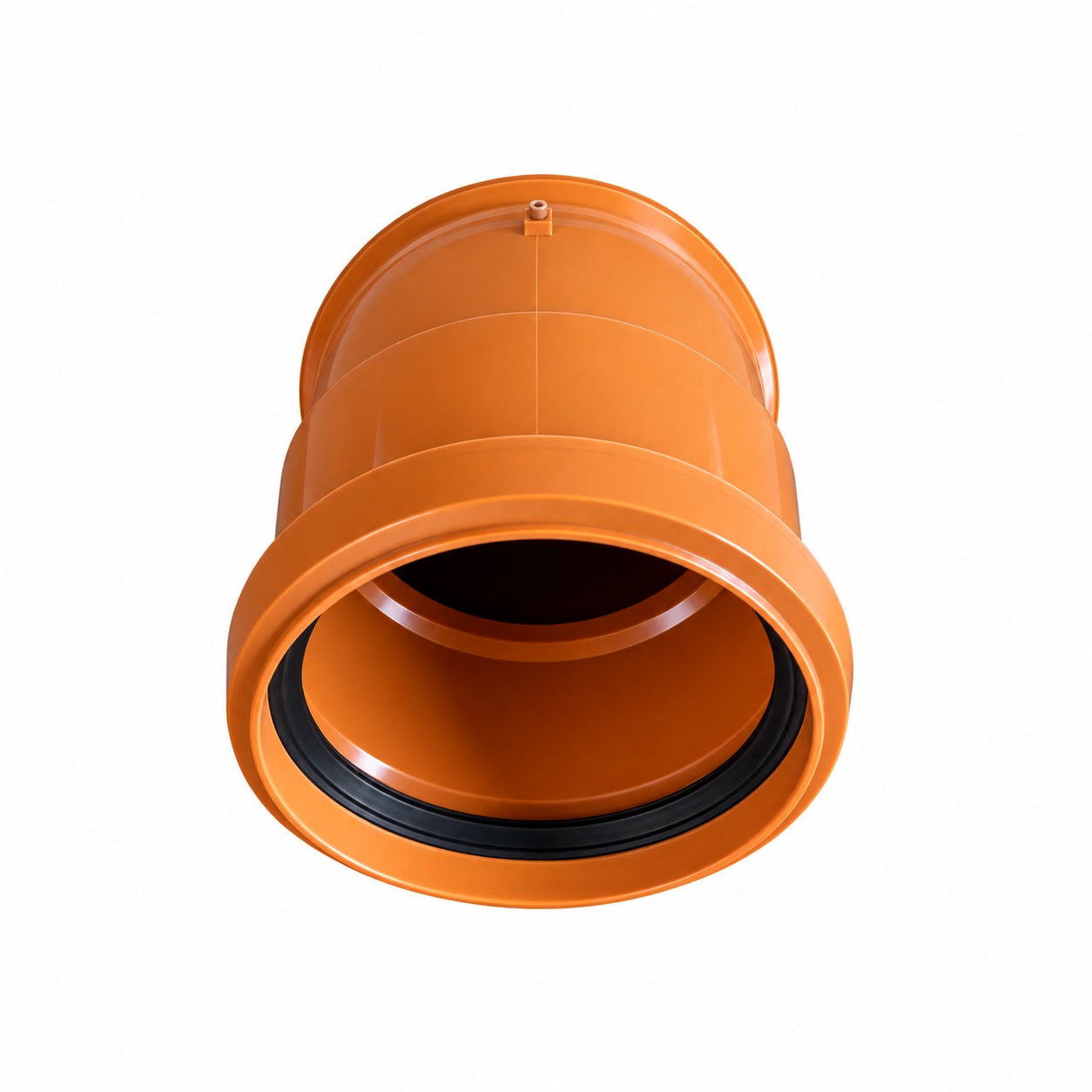

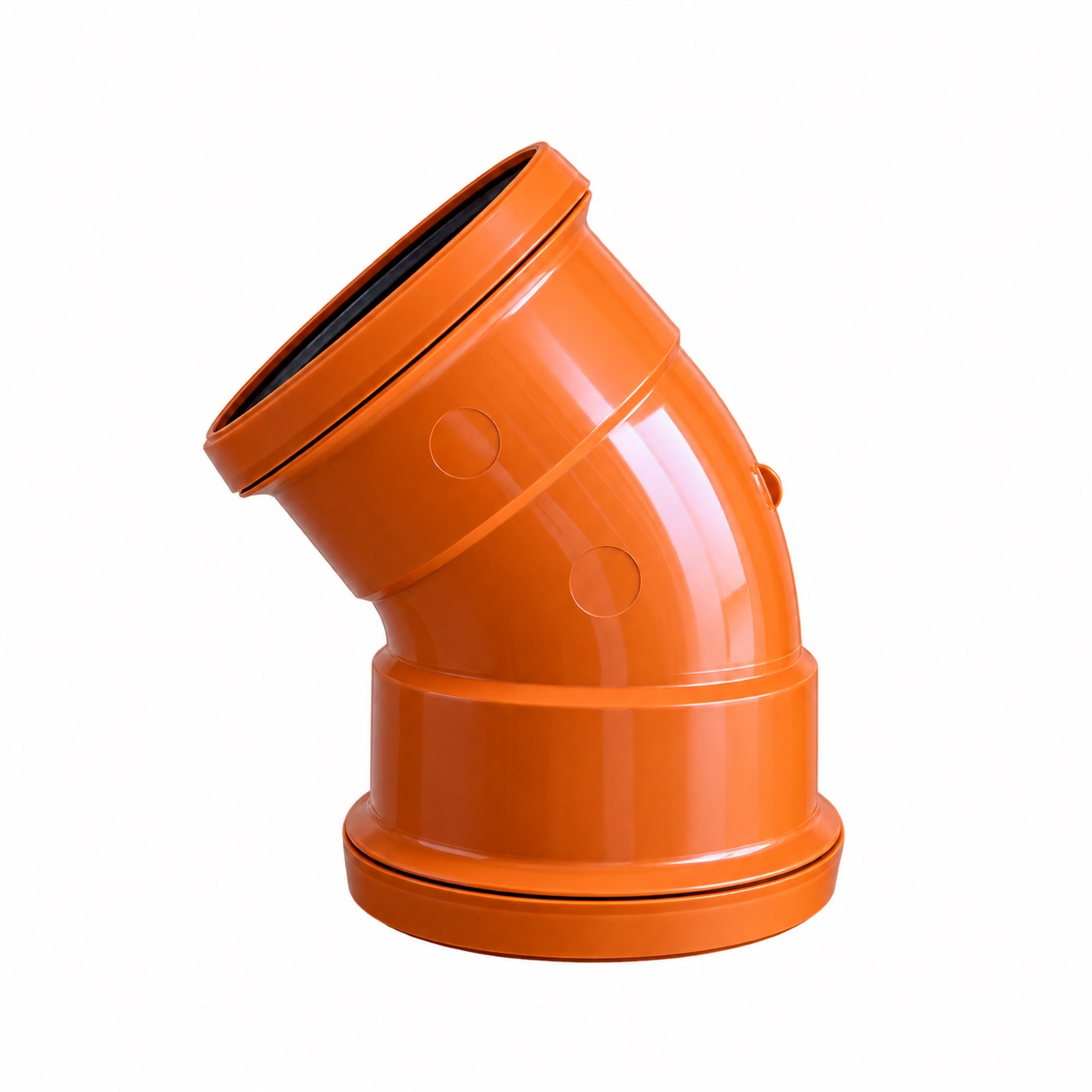

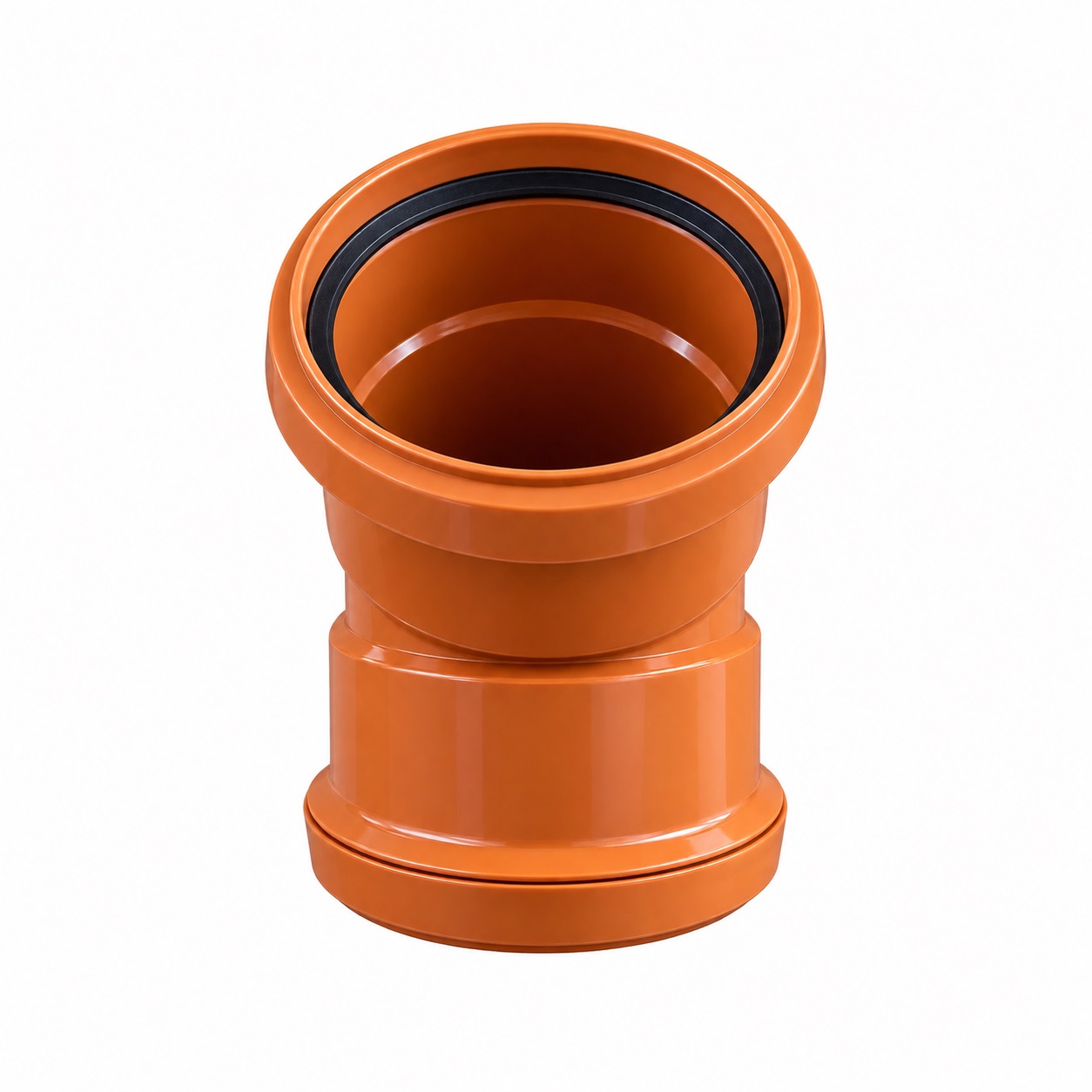

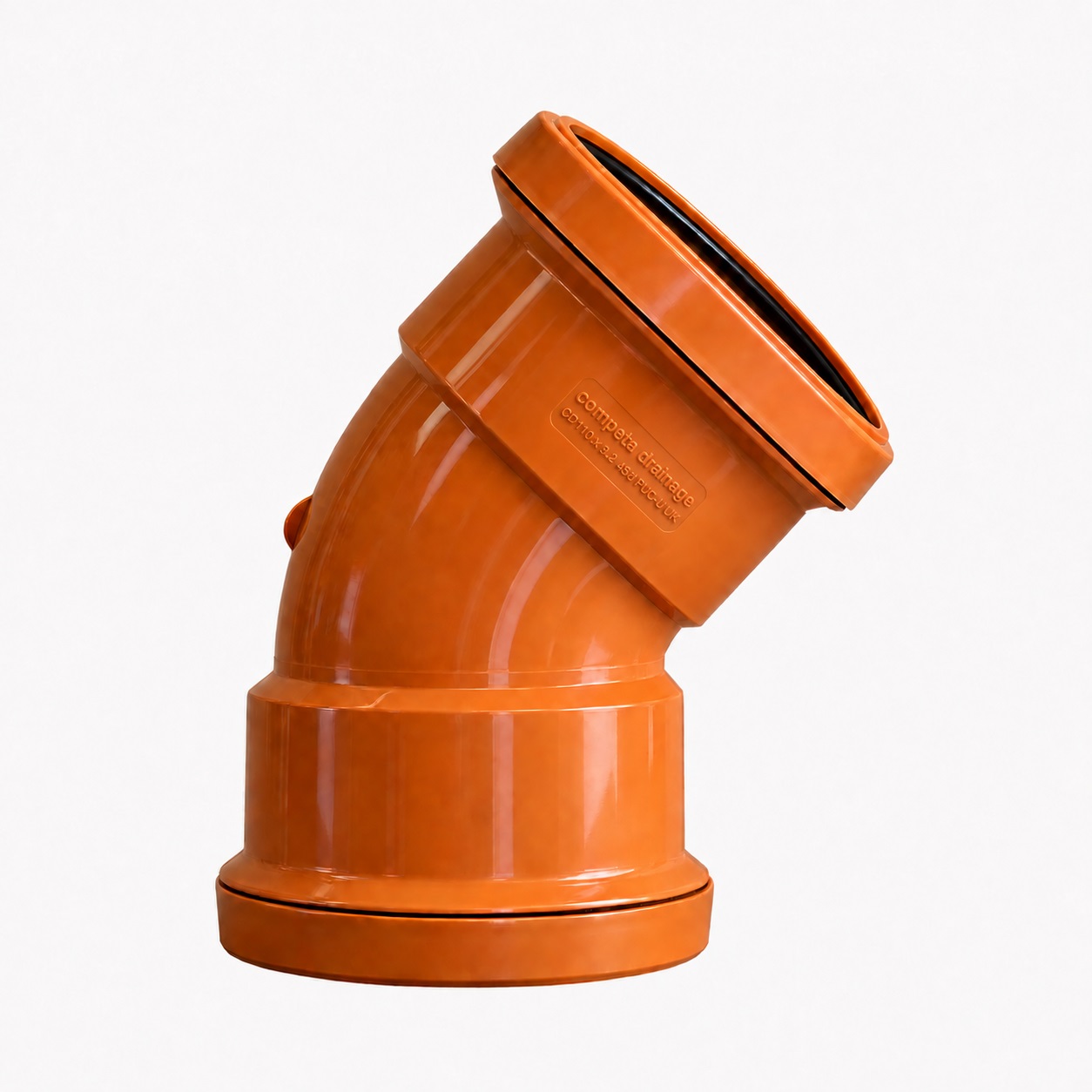

Competa 45 Degree Double Socket Bend for 110mm Underground Drainage
The
Competa 45 degree double socket bend is a competitively priced fitting for changing the direction of compatible 110mm underground drainage pipework. With socket connections at both ends, it provides a simple way to create a nominal 45° change of direction within a below-ground drainage system. This
110mm double socket bend is suitable for general underground drainage installations, repairs and extensions where a controlled change of direction is required. It forms part of the Competa Drainage range, providing a practical strong-value option for trade and DIY drainage work.
Product Features
- 110mm nominal underground drainage size
- 45° nominal bend angle
- Double socket configuration
- Socket connection at both ends
- Suitable for compatible 110mm underground drainage systems
- Suitable for foul and surface water drainage layouts
- Suitable for new installations, repairs and extensions
- Competitively priced Competa Drainage range
- Stated product standard: EN 1401
- Competa Drainage product code CUG4DSB45
45 Degree Drainage Bend
A
45 degree drainage bend provides a more gradual change of direction than a 90° bend and can be used when routing underground drainage around obstacles or altering the direction of a pipe run. Where the drainage layout allows, bends with shallower angles can help create a smoother route through the system and may also be combined where a particular change of direction is required.
Double Socket Connection
The
110mm double socket bend has a socket connection at each end, allowing compatible plain-ended underground drainage pipe or fittings to connect directly into both sides. Always check the connection type of the surrounding pipework before ordering, particularly when choosing between single socket and double socket versions of the same bend.
Where to Use This Underground Drainage Bend
This
underground drainage bend is suitable for use within compatible below-ground foul and surface water drainage systems. Typical applications include:
- Domestic foul water drainage
- Surface water drainage systems
- House extensions and alterations
- New underground drainage installations
- Drainage repairs and replacements
- Changes of direction in 110mm pipework
- General groundwork projects
Installing the 110mm Drainage Bend
Before fitting the
110mm drainage bend, establish the required route, fall and alignment of the drainage system. Any pipe cut on site should be cut square and sharp burrs removed before assembly. Clean the jointing surfaces and use suitable underground drainage lubricant where required to help the pipe enter the socket correctly. Align the fitting and surrounding pipework before making the final connections. Avoid forcing pipework sideways into the bend to compensate for poor alignment.
Supporting Below-Ground Drainage Fittings
The bend and surrounding pipework should be correctly supported on suitable bedding as part of the underground drainage installation. Check the alignment and joints before backfilling, and avoid placing sharp stones, rubble or other potentially damaging material directly against the fitting.
Competa Drainage – Practical Value
The
Competa 45 degree double socket bend is part of our competitively priced Competa Drainage range, offering a cost-effective option for everyday underground drainage installations. It is well suited to trade work, property extensions, drainage repairs and general groundwork where dependable fittings are required at a competitive price point.
Choosing the Correct 110mm Bend
This product is the nominal
45° double socket version. Other angles and socket configurations are available, so check the required drainage route and surrounding connections before ordering. For a sharper change of direction, a 90° bend may be required, while 15° and 30° bends can be used for smaller directional adjustments.
Compatible 110mm Underground Drainage
Browse our complete
110mm underground drainage range for compatible pipes, bends, couplers, branches, access fittings, rodding points and drainage accessories. For general UK guidance covering below-ground drainage installations, see
Approved Document H: Drainage and Waste Disposal.
