110mm Underground Drainage 30° Double Socket Bend Competa Drainage | CUG4DSB30

Description

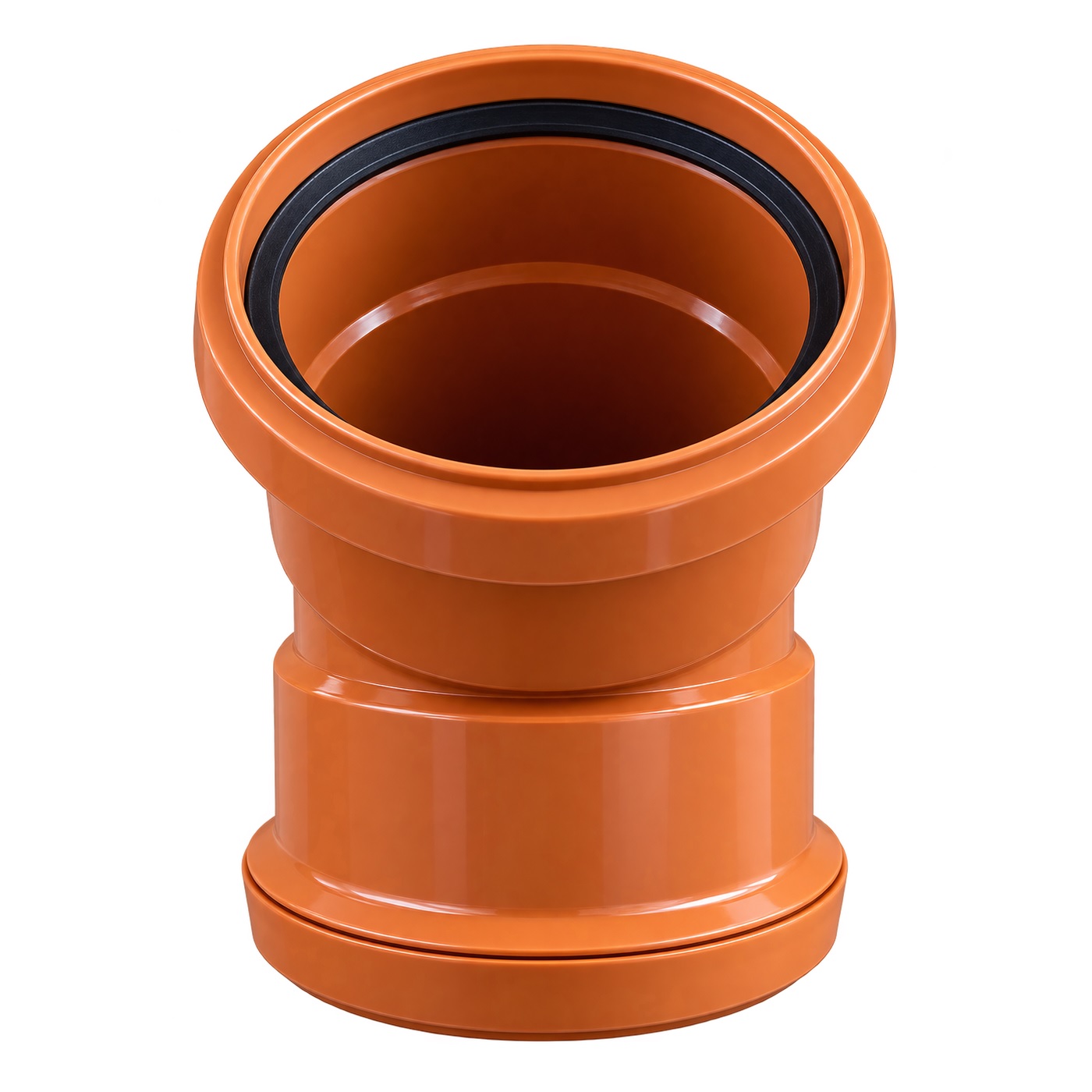

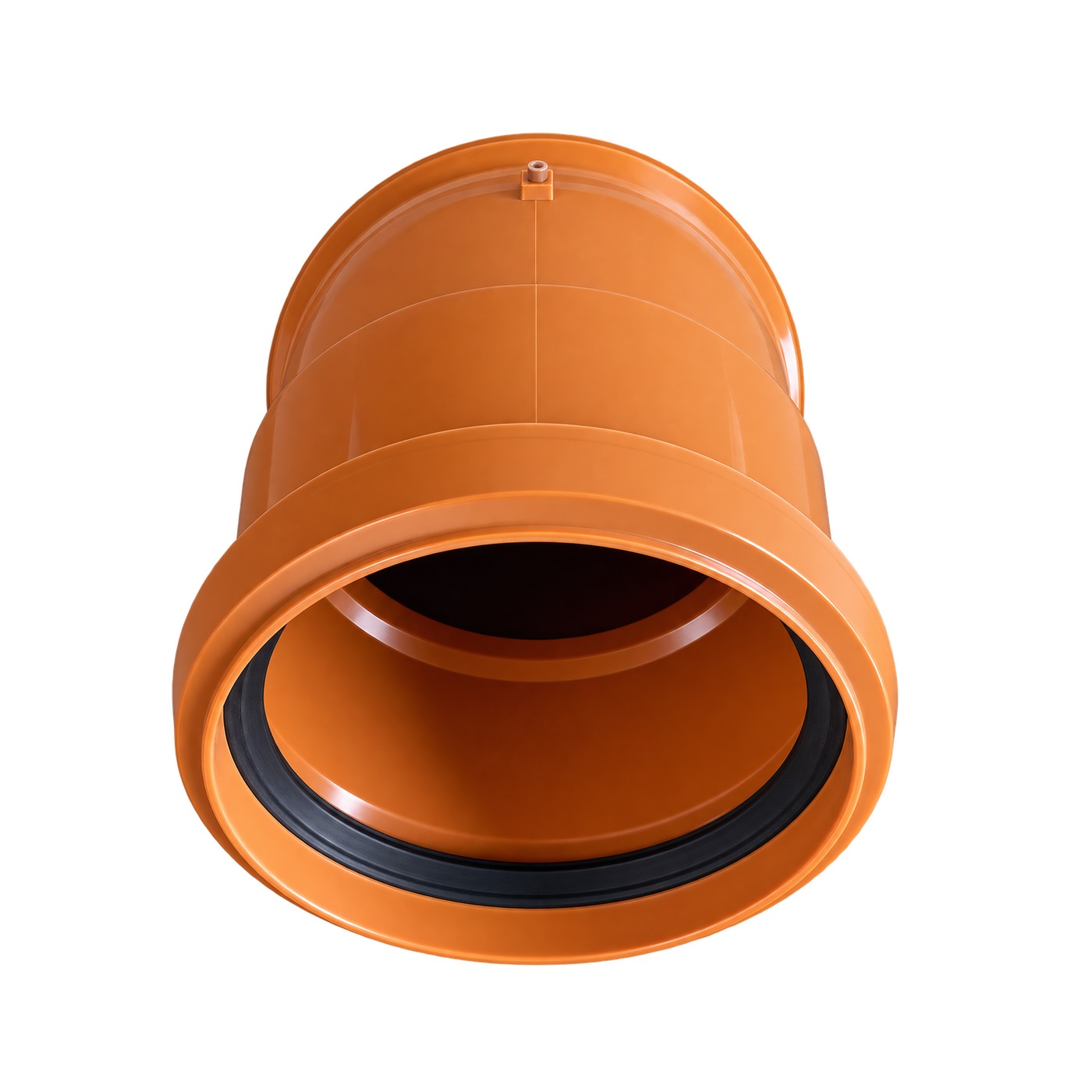

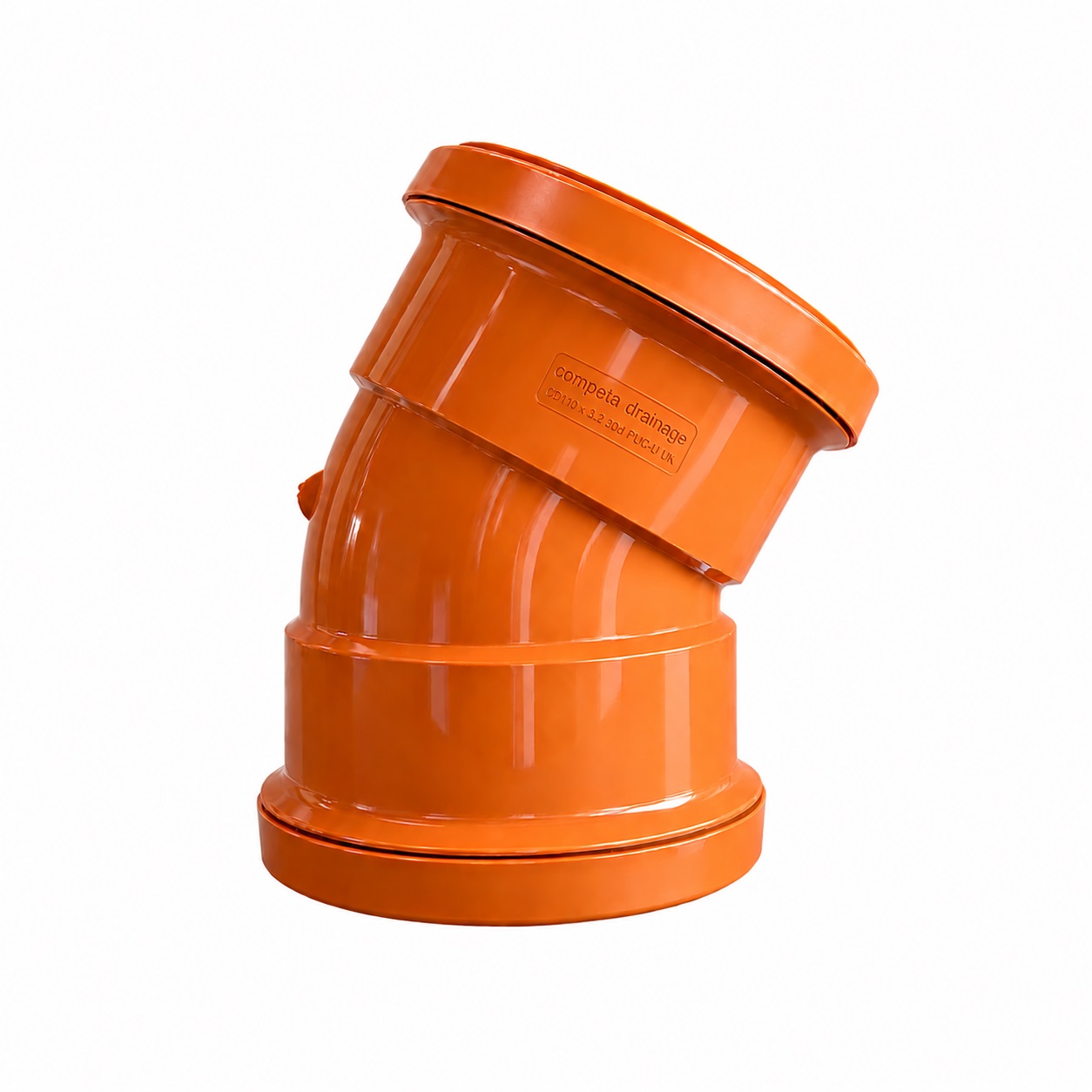

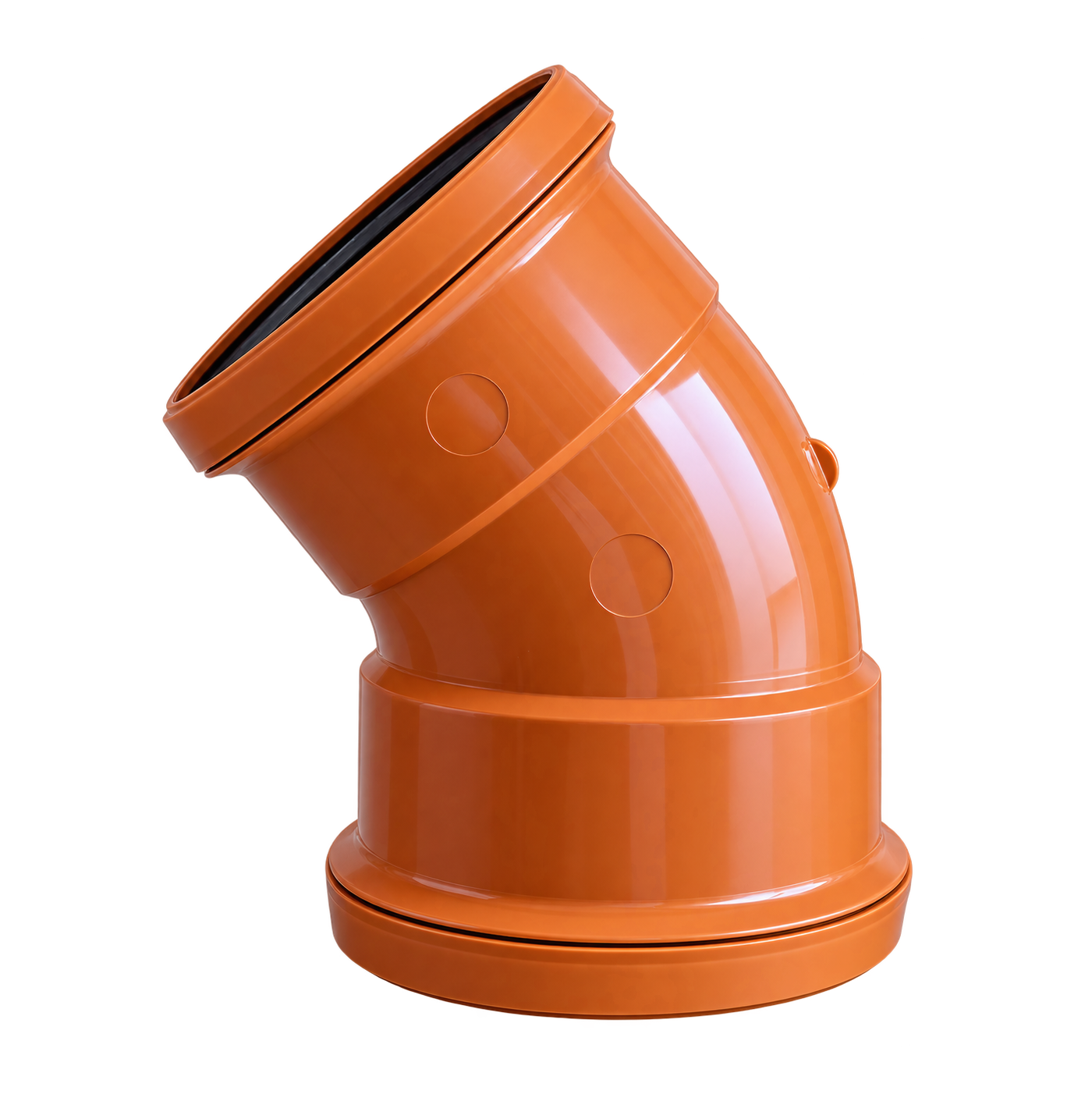

Competa 30 Degree Double Socket Bend for 110mm Underground Drainage

The Competa 30 degree double socket bend is a competitively priced fitting for creating a controlled change of direction within compatible 110mm underground drainage pipework. With socket connections at both ends, it provides a straightforward way to join two compatible plain-ended drainage pipes or fittings through a nominal 30° angle. This 110mm double socket bend is suitable for general below-ground drainage installations, extensions and repairs where a smaller directional adjustment is required. It forms part of the Competa Drainage range, providing a practical strong-value option for trade and DIY drainage work.

30 Degree Double Socket Bend Features

• 110mm nominal underground drainage size
• 30° nominal bend angle
• Double socket configuration
• Socket connection at both ends
• Designed for compatible 110mm underground drainage systems
• Suitable for foul and surface water drainage layouts
• Useful for new installations, repairs and extensions
• Terracotta / orange underground drainage appearance
• Competitively priced Competa Drainage range
• Competa Drainage product code CUG4DSB30

30 Degree Drainage Bend

A 30 degree drainage bend provides a relatively gentle change of direction within an underground pipe run. It can be useful where the drainage route needs adjusting without introducing the sharper directional change created by a 45° or 90° bend. Multiple smaller-angle bends may also be used where the planned drainage route requires a more gradual directional change.

110mm Double Socket Bend

The 110mm double socket bend has a socket connection at each end, allowing compatible plain-ended underground drainage pipe or fittings to connect into both sides. Check the connection arrangement of the surrounding pipework before ordering, particularly when selecting between single socket and double socket versions of the same fitting.

Where to Use This Underground Drainage Bend

This underground drainage bend can be incorporated into compatible below-ground foul and surface water drainage systems where a nominal 30° change of direction is required. Typical applications include:

• Domestic underground drainage systems
• Foul water drainage
• Surface water drainage
• House extensions and alterations
• Drainage repairs and replacements
• New-build drainage installations
• General groundwork projects
• Minor changes of direction in 110mm drainage runs

Installing the 110mm Drainage Bend

Before installing the 110mm drainage bend, check the required route, fall and alignment of the complete underground drainage system. Where drainage pipe is cut on site, make the cut square and remove sharp burrs or rough edges before assembly. Clean the jointing surfaces and use a suitable underground drainage lubricant where required. Align the fitting correctly before completing the joints and avoid forcing surrounding pipework sideways to compensate for poor positioning.

Supporting Below-Ground Drainage Fittings

The fitting and surrounding drainage pipe should be laid on suitable bedding and correctly supported as part of the complete underground drainage installation. Check the finished alignment and connections before backfilling, and avoid placing sharp stones, rubble or other potentially damaging material directly against the fitting.

Competa Drainage – Practical Value

The Competa 30 degree double socket bend forms part of our competitively priced Competa Drainage range, selected to provide practical underground drainage fittings at a strong-value price point. It is particularly suitable for trade work, property extensions, drainage repairs and general groundwork where reliable everyday fittings are required while keeping material costs competitive.

Choosing the Correct 110mm Bend

This product is the nominal 30° double socket version. Other bend angles and socket configurations are available, so check the required drainage route and surrounding connections before ordering. For a smaller directional adjustment, consider a 15° bend. For a greater change of direction, 45° and 90° options are also available within the 110mm underground drainage range.

Compatible 110mm Underground Drainage

Browse our complete 110mm underground drainage range for compatible pipes, bends, couplers, branches, access fittings, rodding points and drainage accessories. For general UK guidance covering below-ground drainage installations, see Approved Document H: Drainage and Waste Disposal.
