Description

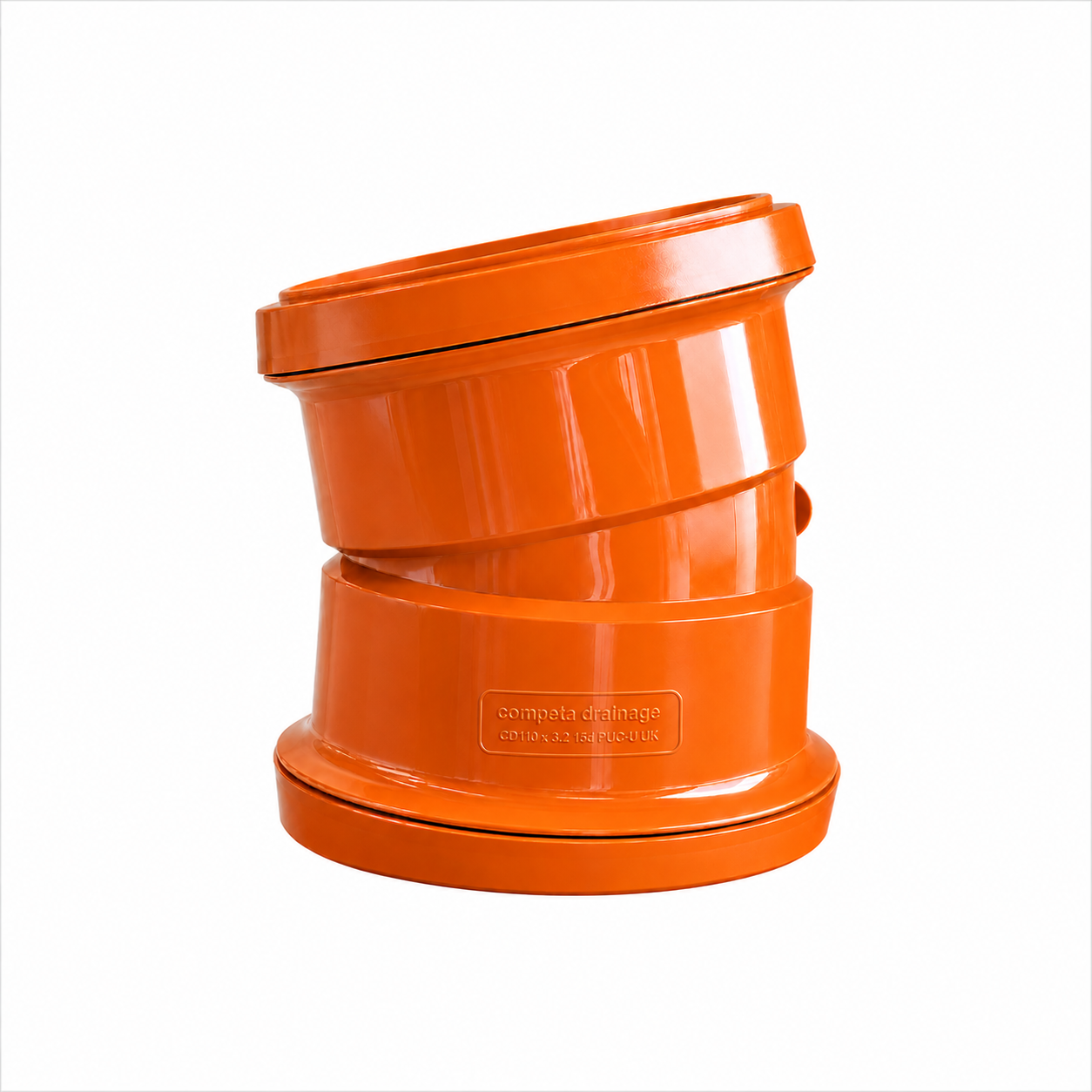

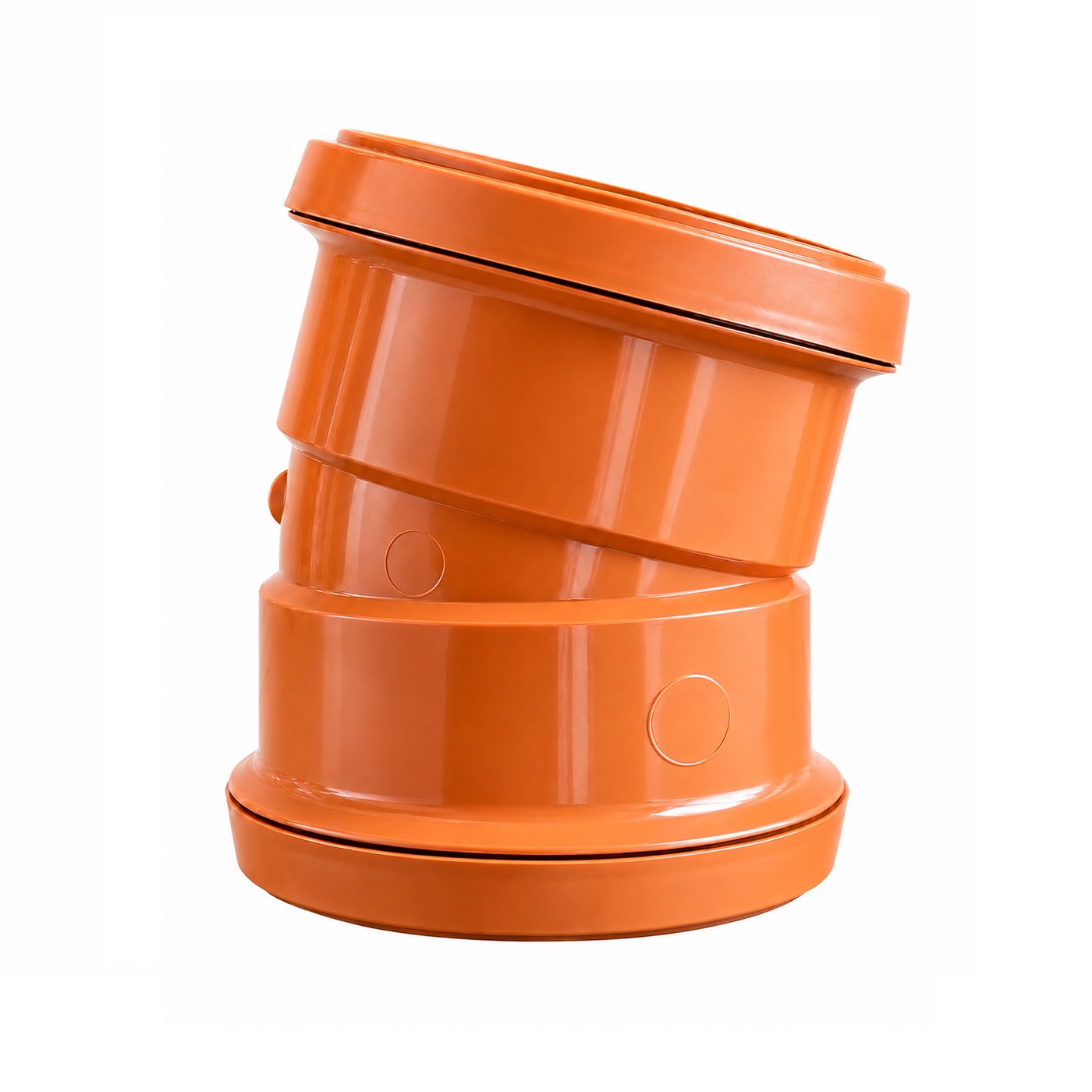

Competa 15 Degree Double Socket Bend for 110mm Underground Drainage
The
Competa 15 degree double socket bend is a competitively priced fitting for creating a gentle change of direction within compatible 110mm underground drainage pipework. With a socket connection at both ends, it provides a straightforward way to connect compatible drainage pipes or fittings through a nominal 15° angle. This
110mm double socket bend is particularly useful where only a small directional adjustment is required within a below-ground drainage run. It forms part of the Competa Drainage range, offering a practical strong-value option for new installations, extensions and drainage repairs.
15 Degree Bend Features
- 110mm nominal underground drainage size
- 15° nominal bend angle
- Double socket configuration
- Socket connection at both ends
- Suitable for compatible 110mm underground drainage systems
- Suitable for foul and surface water drainage layouts
- Useful for minor directional adjustments
- Suitable for new installations, extensions and repairs
- Competitively priced Competa Drainage range
- Stated product standard: EN 1401
- Competa Drainage product code CUG4DSB15
15 Degree Drainage Bend
A
15 degree drainage bend provides a shallow change of direction within underground pipework. It is useful where the drainage route only needs a slight adjustment rather than the greater directional change provided by a 30°, 45° or 90° fitting. Smaller-angle bends can also be combined where the planned drainage route requires a gradual change in alignment.
110mm Double Socket Bend
The
110mm double socket bend has socket connections at both ends, allowing compatible plain-ended drainage pipe or fittings to connect into either side of the bend. Always check the socket arrangement required by the surrounding pipework before ordering, particularly when choosing between single socket and double socket versions.
Where to Use This Underground Drainage Bend
This
underground drainage bend can be incorporated into compatible below-ground drainage installations wherever a nominal 15° directional change is required. Typical applications include:
- Domestic underground drainage
- Foul water drainage systems
- Surface water drainage systems
- House extensions and alterations
- New underground drainage installations
- Drainage repairs and replacements
- Minor alignment changes in 110mm pipework
- General groundwork projects
Installing the 110mm Drainage Bend
Before fitting the
110mm drainage bend, establish the required route, fall and alignment of the complete drainage system. Where drainage pipe is cut on site, make the cut square and remove any sharp burrs or rough edges before assembly. Clean the jointing surfaces and use a suitable underground drainage lubricant where required. Align the fitting and surrounding pipework before completing the joints. Avoid forcing the pipework sideways into the bend to compensate for incorrect positioning.
Supporting Below-Ground Pipework
The bend and surrounding drainage pipework should be correctly supported on suitable bedding as part of the complete below-ground drainage installation. Check the finished pipe alignment and connections before backfilling. Avoid placing sharp stones, rubble or other potentially damaging material directly against the fitting.
Competa Drainage for Cost-Effective Installations
The
Competa 15 degree double socket bend forms part of our competitively priced Competa Drainage range, providing a practical option for everyday underground drainage work. It is particularly suitable for trade projects, property extensions, drainage repairs and general groundwork where material costs need to remain competitive.
Choosing the Correct Bend Angle
This product is the nominal
15° double socket version. It is intended for relatively small changes in direction within 110mm pipework. For larger directional changes, 30°, 45° and 90° bends are also available, so check the planned drainage route and surrounding connections before ordering.
Compatible 110mm Underground Drainage
Browse our complete
110mm underground drainage range for compatible pipes, couplers, branches, access fittings, rodding points and drainage accessories. For general UK guidance covering below-ground drainage installations, see
Approved Document H: Drainage and Waste Disposal.
