450mm Manhole Chamber Base 110mm 5 Inlet Kayflow | UG1005

Description

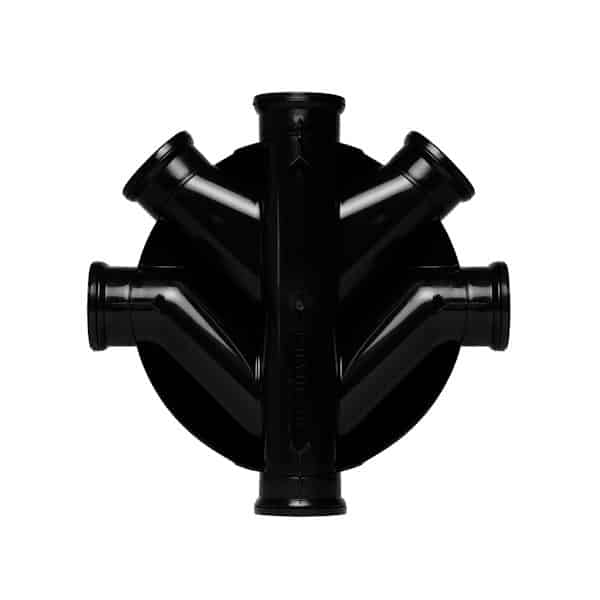

The 450mm Manhole Chamber Base 110mm 5 Inlet from Kayflow is designed to form the base of a 450mm underground drainage inspection chamber using 110mm pipework. The genuine Kayflow UG1005 chamber base provides a five-inlet arrangement that gives installers several connection options when bringing multiple underground drainage runs into one accessible chamber. This 110mm 450mm inspection chamber base has one main inlet, two 90° side inlets and two 45° side inlets. Four blanking plugs are supplied as part of the chamber base arrangement so unused connections can be closed off to suit the required drainage layout. All sockets on the UG1005 are designed for 110mm underground drainage pipework.

450mm Manhole Chamber Base 110mm 5 Inlet

The 450mm Manhole Chamber Base 110mm 5 Inlet is a useful solution for underground drainage installations where several 110mm drainage runs need to converge at a single inspection point. Its 450mm nominal chamber diameter provides more working and access space than smaller inspection chamber systems while allowing the chamber height to be built up using compatible Kayflow 450mm risers. Kayflow manufactures the base from polypropylene as part of its 450mm inspection chamber system. Kayflow states that its 450mm bases, risers, lids and frames are manufactured from polypropylene and that the complete chamber system can be installed to a maximum depth of 1200mm when installed in accordance with the manufacturer’s guidance.

Kayflow UG1005 Chamber Base Connection Layout

The Kayflow UG1005 chamber base is designed around a flexible five-inlet configuration:

• 1 x main entry
• 2 x 90° side entries
• 2 x 45° side entries
• 4 x blanking plugs
• 110mm sockets throughout
• 450mm nominal chamber size
• Polypropylene construction

This configuration allows the installer to select the most suitable entries for the drainage layout rather than having to connect every available socket. Unused connections can be blanked off using the supplied plugs.

110mm 450mm Inspection Chamber Base

The 110mm 450mm inspection chamber base is intended for use with compatible 110mm underground drainage pipework. This is important when choosing between similar Kayflow 450mm chamber bases because UG1005 uses 110mm sockets throughout. Kayflow also manufactures the UG1014 450mm chamber base, which differs because its main run and 90° side connections are 160mm. The UG1005 should therefore be selected where a 110mm 450mm inspection chamber base is required rather than the larger 160mm connection arrangement.

450mm 5 Inlet Chamber Base for Flexible Drainage Layouts

The 450mm 5 inlet chamber base is particularly useful where several drainage branches need to join before continuing through the underground drainage system. The combination of straight, 90° and 45° connection positions provides greater flexibility when planning drainage routes around buildings, extensions and other underground services. Because the 450mm 5 inlet chamber base includes blanking plugs, only the connections required for the installation need to be opened and used. This makes the UG1005 suitable for both relatively straightforward drainage layouts and installations where several incoming drainage runs need to be accommodated.

Building a Kayflow 450mm Inspection Chamber

The Kayflow 450mm manhole base forms the bottom section of the inspection chamber. Compatible 450mm chamber risers can then be fitted above the base to achieve the required finished chamber height before a suitable cover and frame is installed. Kayflow advises that silicone sealant should be used when fitting the first riser to the manhole base and again when joining subsequent risers. The manufacturer states that the complete 450mm inspection chamber system has a maximum installation depth of 1200mm. For other compatible components, including chamber risers, sealing rings and covers, browse our 110mm x 450mm Manhole Inspection Chambers.

Kayflow 450mm Manhole Base

The Kayflow 450mm manhole base is manufactured as part of Kayflow’s underground drainage range and is designed to work with the corresponding 450mm inspection chamber components. Using compatible chamber components helps create a complete inspection point that provides access to the underground drainage system for inspection, maintenance and rodding where required. The UG1005 is supplied as the chamber base only. Risers, riser sealing components and the final chamber cover and frame are separate products unless specifically stated otherwise.

Why Choose the Kayflow UG1005 Chamber Base?

• Genuine Kayflow UG1005 component
• Designed for 110mm underground drainage
• Five possible inlet positions
• One main, two 90° and two 45° entries
• Four blanking plugs for unused connections
• 450mm nominal chamber size
• Polypropylene construction
• Compatible with Kayflow 450mm chamber components
• Suitable for building an accessible underground inspection chamber

The Kayflow UG1005 chamber base is therefore a versatile option when a genuine 450mm Manhole Chamber Base 110mm 5 Inlet is needed for an underground drainage installation. For additional manufacturer specifications and installation information, see the Kayflow 450 Inspection Chambers product information.
