Twin & Earth Cable Flat LSZH 2.5mm 6242B White 100m

£103.36 Including VAT @20%

Twin & Earth Cable Flat LSZH 2.5mm 6242B White 100m

SKU: 52525640 Category: Tag:
Twin & Earth Cable Flat LSZH 2.5mm 6242B White 100m
£ 86.13Available online
Shipped From: Central Depot NEXT DAY (not guaranteed) Cut Off 4pm (COVID-19) No Service Is Guaranteed Currently

Description

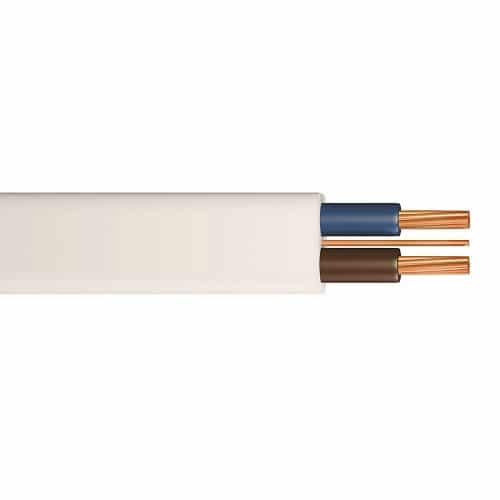

Twin & Earth Cable Flat LSZH 2.5mm 6242B White 100m

Twin and Earth is a name for a type of Mains Electricity Cable, and is the most common cable for domestic wiring today. Comprising of 1 Live (Brown) and 1 Neutral (Blue) sheathed conductor, and a Earth which is of the CPC type (Circuit Protective Conductor) which is bare. The Overall sheath is of Thermoplastic Construction to BS7211. The 2.5mm Conductors are Solid with the CPC earth being 1.5mm, and rated in normal conditions at around 24 Amps, but when wired as a ring main exceeds 32 Amps, this particular size is common with very Ring Main circuits. These cables are designed to be used where smoke and acidic gas emission would pose a major hazard in the event of a fire.

Manufacturer Stock Code: 6242B2.5W100

EAN Code: 5055268717721

  • Voltage Rating – 300/500 Volts
  • Temperature Rating – Between -15oc to +90oC
  • Overall Standard – BS 7211:2012 Table 5
  • Conductor Standard – BS EN 60228 Class 1 Plain Annealed Copper
  • Insulation Standard – BS 7655-1.3 Thermosetting XLPE Type GP8
  • Sheath Standard – BS7655-6.1 Thermoplastic LSNH Type LTS 3
  • Overall external Dimensions -5.3mm x 9.7mm


Additional Information

Weight15 kg
